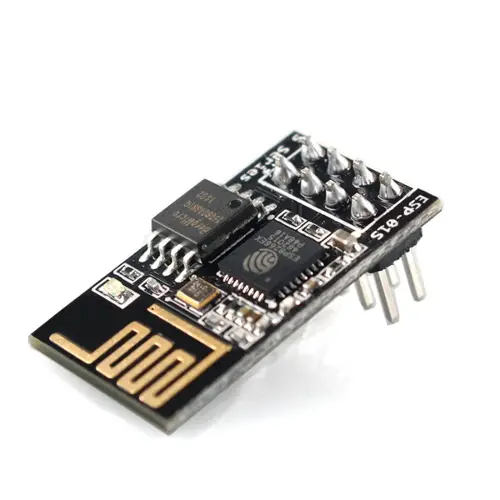

ESP8266 ESP-01 Wifi Transceiver Module Board

The ESP8266 ESP01 is a compact, budget-friendly Wi-Fi microcontroller module powered by the Espressif ESP8266 chip. This module is designed for seamless integration with other microcontrollers, providing an efficient and cost-effective method of adding Wi-Fi connectivity to a variety of projects. Whether you're working on a hobbyist project or a professional IoT (Internet of Things) application, the ESP8266 ESP01 offers impressive functionality and versatility. Featuring TCP/IP protocol support, it ensures reliable data transmission, making it an excellent choice for IoT solutions. Equipped with a powerful Tensilica Xtensa LX3 processor, it can easily handle a range of tasks. Additionally, its small form factor (18mm x 25.6mm x 3mm) allows for easy integration into various designs.

Package Includes:

• 1 x ESP8266 ESP01 Wi-Fi Module

Features:

• Microcontroller: Based on the Espressif ESP8266 chip, the ESP8266 ESP01 offers a powerful and low-cost solution suitable for a variety of applications.

• Onboard Wi-Fi: This module features built-in Wi-Fi, enabling seamless connection to a network for data transmission using simple TCP/IP protocols.

• Dual Use: The ESP8266 ESP01 can be used as either a UART-to-Wi-Fi adapter or a standalone microcontroller, making it highly versatile for different projects.

• Processing Power: Powered by the Tensilica Xtensa LX3 processor, the ESP8266 ESP01 provides sufficient processing capability for most applications.

• Affordable: The ESP8266 ESP01 is a low-cost solution, making it ideal for IoT applications where budget is a consideration.

• Compact Design: Its small size makes the ESP8266 ESP01 easy to incorporate into space-constrained projects.

• TCP/IP Protocol Support: The ESP8266 ESP01 supports TCP/IP, enabling reliable communication for various IoT applications.

• Wide Range of Applications: The ESP8266 ESP01 is widely used in everything from hobbyist projects to professional IoT systems due to its flexibility and ease of use.

Description: The ESP8266 ESP01 is a compact Wi-Fi microcontroller module based on the Espressif ESP8266 chip. It is designed for easy integration with other microcontrollers, offering a cost-effective way to incorporate Wi-Fi connectivity into a wide range of projects. The module has an onboard Wi-Fi transceiver that can act as a UART-to-Wi-Fi adapter, allowing other microcontrollers to connect to Wi-Fi networks and transmit data over the internet using TCP/IP protocols. This makes the ESP8266 ESP01 an excellent choice for IoT applications where remote monitoring or control is needed. It can also function as a standalone microcontroller, equipped with a Tensilica Xtensa LX3 processor, enabling it to run complex applications independently. Due to its small size, affordability, and Wi-Fi capabilities, the ESP8266 ESP01 is popular among hobbyists and professionals alike, used in a wide array of projects from home automation to industrial IoT solutions.

Principle of Operation: The ESP8266 ESP01 is a low-cost microcontroller module developed by Espressif, featuring advanced Wi-Fi capabilities. At its heart, it uses the ESP8266 microcontroller chip, which houses a powerful Tensilica Xtensa LX3 processor. This processor allows the ESP01 to execute complex firmware and perform tasks essential for Internet of Things (IoT) projects.

• Wi-Fi Connectivity: The onboard Wi-Fi radio allows the ESP01 to connect to Wi-Fi networks and exchange data over the internet, making it ideal for tasks like cloud data transfer and remote control.

• Firmware Execution: The ESP01 operates by executing firmware stored in its flash memory. This firmware supports communication protocols such as TCP/IP and HTTP, enabling the module to interact with Wi-Fi networks and other devices.

• Data Transmission: Once connected to a Wi-Fi network, the ESP01 can send and receive data, making it suitable for IoT applications where remote interaction with servers or devices is needed.

Programming the ESP8266 ESP01: There are two primary ways to program the ESP8266 ESP01:

1. Using the Arduino IDE:

   • The Arduino IDE is a popular platform for programming the ESP01. By installing the ESP8266 board package, you can write and upload code directly to the module to control its functions and connect to Wi-Fi networks.

   • The ESP01 can be used as a standalone microcontroller by writing code to configure GPIO pins, connect to Wi-Fi, and implement various IoT applications.

2. Using AT Commands (UART-to-Wi-Fi Adapter Mode):

   • In this mode, the ESP01 functions as a UART-to-Wi-Fi adapter. AT commands are sent through a serial interface to configure Wi-Fi settings and perform simple TCP/IP operations, ideal for users who prefer a simpler setup.

Advantages of the ESP8266 ESP01:

• Wi-Fi Capabilities: The onboard Wi-Fi module supports both station and access point modes, enabling various networking configurations.

• Cost-Effective: Its affordability makes it accessible for a broad range of applications, from hobbyist to professional projects.

• Compact Size: The small form factor allows integration into tight spaces.

• Powerful Processing: The Tensilica Xtensa LX3 processor provides enough processing power to handle complex IoT applications.

Pinout: The ESP8266 ESP01 has several pins for various functions. Here's a breakdown of the most commonly used pins:

Applications:

• Wi-Fi Connectivity: Ideal for adding Wi-Fi to projects lacking built-in connectivity.

• IoT Applications: Perfect for connecting sensors, actuators, and other devices in IoT systems.

• Smart Home Automation: Used in creating Wi-Fi-controlled home systems like lighting and climate control.

• Wireless Data Logging: Can collect and transmit sensor data to a central server for analysis.

• Wi-Fi-Enabled Projects: Perfect for projects such as robots, drones, and educational kits.
