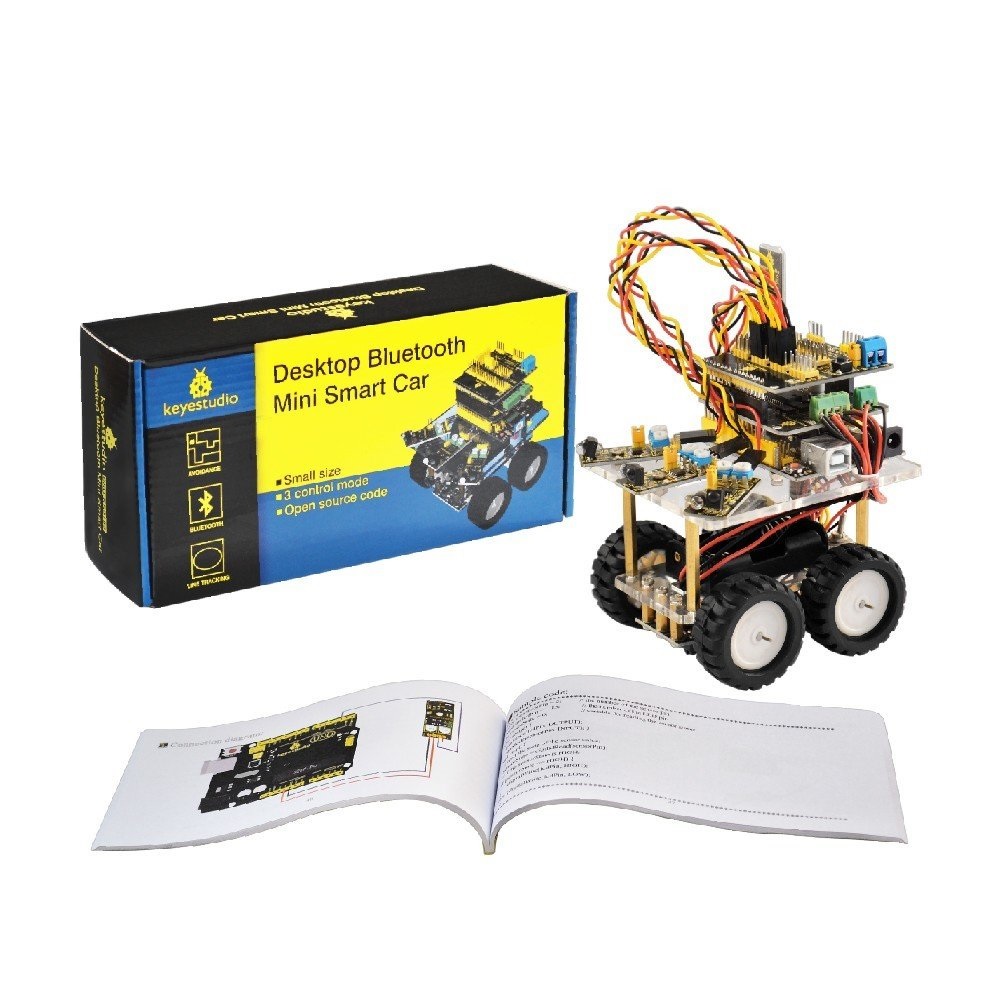

Robot - keyestudio Desktop Bluetooth Mini Smart Car Ks0159
The Multi-functional Smart Car is a microcontroller-based learning system that can be controlled via Arduino. It supports functions such as line tracking, obstacle avoidance, and Bluetooth remote control. The kit includes a variety of interesting programs and can be expanded with additional modules for more features, offering an engaging way to learn Arduino programming.
The Multi-functional Smart Car is a learning application development system based on microcontrollers, designed to be controlled by ARDUINO. It offers essential functions such as line tracking, obstacle avoidance, and Bluetooth remote control. This kit provides a wide range of interesting programs that will help you learn Arduino programming in a fun and engaging way. The system is designed for users to develop skills in Arduino MCU programming while building and experimenting with robotic functionalities. Additionally, the kit can be expanded with external circuit modules to add more features, making it an excellent choice for hands-on learning and exploration.
Parameters:
- Motor Parameters: Voltage: 1.5 - 12V; Shaft length: 10mm; Revolving speed: 6.0V 100rpm/min.
- Uses L298N driver module for motor control.
- Includes three-channel line tracking modules that detect black and white lines with high precision. These modules can also be used for fall prevention.
- Includes three-channel infrared obstacle avoidance modules to detect obstacles ahead.
- Equipped with Bluetooth wireless module for remote control via mobile phone Bluetooth after pairing.
- Supports external power supply (7-12V) and various sensor modules for expanded functionality.
Standard Component List:
- N20 metal gear motor * 4
- High-quality wheels * 4
- Motor holder * 4
- Car chassis * 2
- L298P motor driver shield * 1
- ARDUINO UNO328 board * 1
- ARDUINO sensor shield * 1
- Infrared obstacle avoidance module * 3
- Line tracking module * 3
- HC-06 Bluetooth module * 1
- 14500 battery pack * 1
- 3PIN Dupont wires * 6
- 27MM Copper bush * 4
- 10MM Copper bush * 2
- 3MM screws and nuts * several
Self-prepare parts:
- 3.7V large capacity 1300mA imported 14500 rechargeable batteries * 2
- 14500 charger * 1
Installation Instructions:
Refer to the following images for step-by-step assembly:
