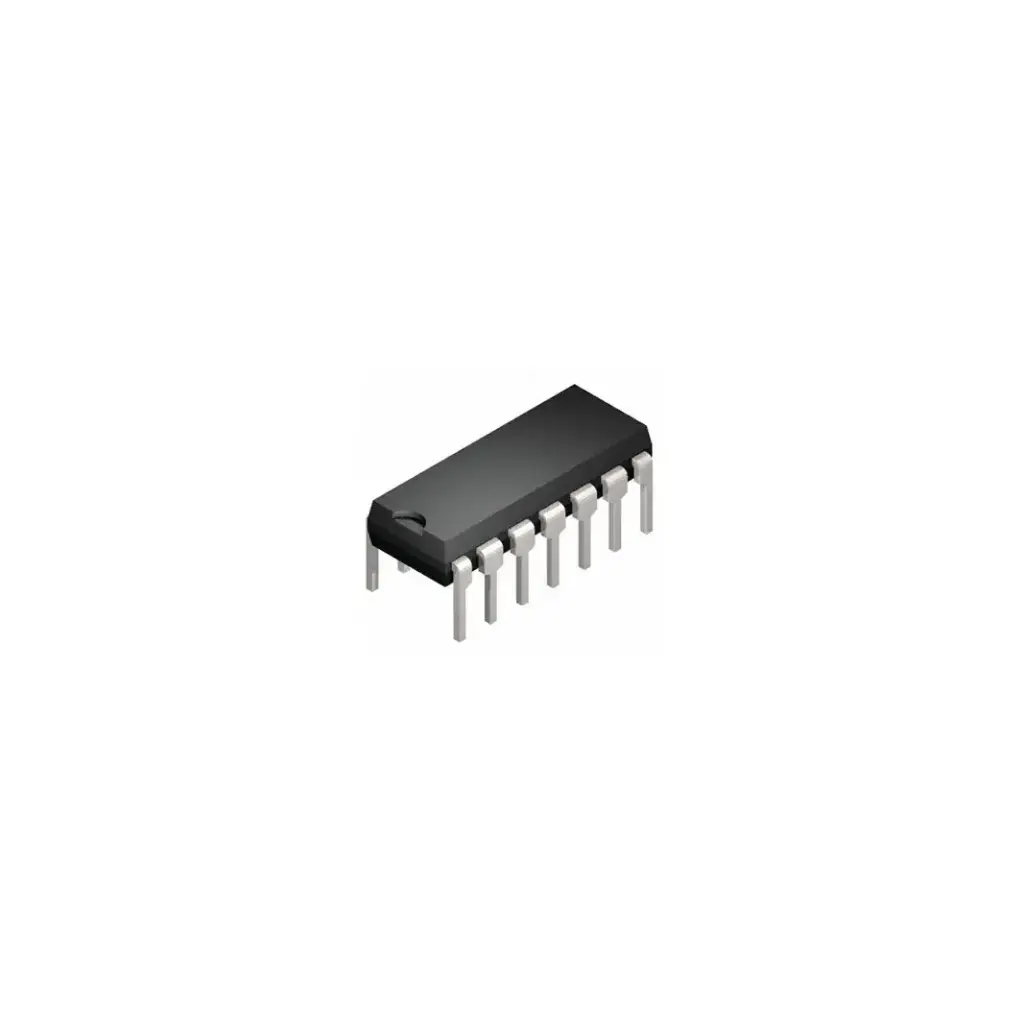

IC Logic Gate 74LS08N AND

The 74LS08 is a Quadruple 8-bit Two-Input AND IC, a digital circuit designed to process logic states. In an AND gate, two logic state signals are employed: HIGH (3-5 Volts) and LOW (0-2.6 Volts). Each AND gate has two input pins and one output pin, with the output transitioning to HIGH only when both input states are HIGH.

Features:

• Low power consumption

• Fast operating speed

• Outputs in TTL, compatible with various devices and microcontrollers

• Independent use of a single AND gate without affecting others

• All four gates can be powered by a single power supply

Specifications:

• Operating Voltage Range: 4.75 – 5.25 Volts, recommended at 5 volts (up to a maximum of 7 volts)

• Maximum Output Current: 8mA

• Rise and Fall Time: 18ns

• Temperature Range: 0 to 70°C, with storage capability from -65 to 150°C

Applications:

• General-purpose logic operations using AND gates

• Widely used in Digital Electronics, Networking Devices, Servers, Memory Units, and ALU

• Versatile usage in various Digital Systems

Package Includes:

• 1 x 74LS08 Quad 2-Input AND IC
