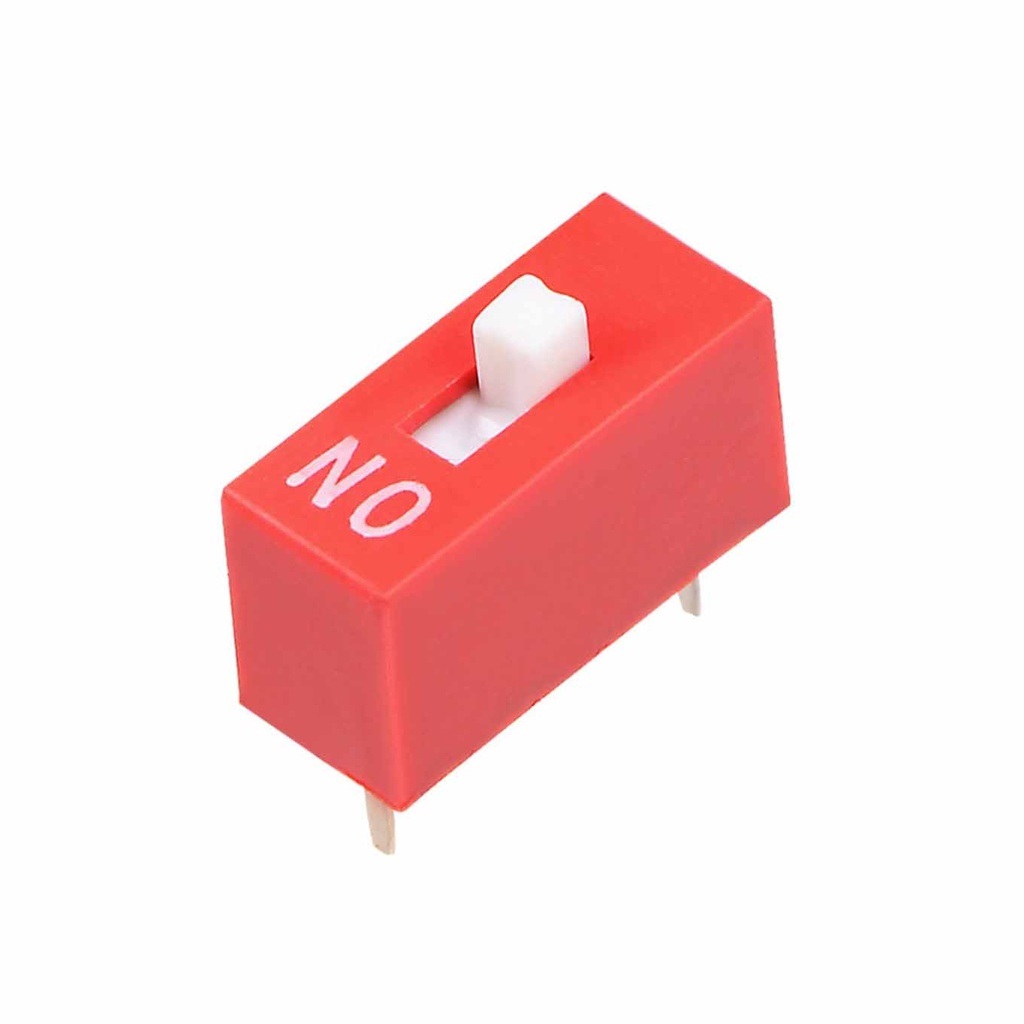

Switch Dip 2.54mm Red Slip Type
This DIP switch is designed in a Dual Inline Package (DIP) format, making it perfect for breadboard and through-hole PCB applications. It consists of a row of small SPST (Single Pole Single Throw) slide switches, allowing for easy manual configuration of digital inputs.
DIP switches are commonly used in applications like DMX lighting control, where each light fixture requires a unique address. While modern systems may use digital displays and microcontrollers to assign these addresses, older systems rely on DIP switches to manually set binary addresses.
Whether you're prototyping a microcontroller project or configuring a legacy system, these DIP switches offer a reliable and compact solution.
Specifications:
Type: Slide-style DIP switch
Positions: 1 to 10
Mounting: Through-hole
Non-switching Rating: 100mA @ 50V DC
Switching Rating: 25mA @ 24V DC
Contact Resistance:
Initial: 50mΩ @ 24V DC / 100mA
After life test: 100mΩ typical @ 24V DC / 100mA
Package Includes:
1 × Slide DIP Switch
